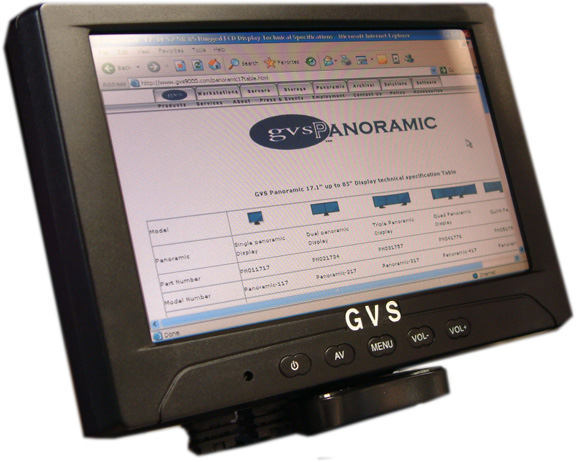

Panoramic3U 7" LCD TFT 16:9 wide 2400x480 resolution display system
GVS delivers among the most advanced, high-quality product lines at a lower cost and at a reduced time line from proto-type to mass production. These 7 inch LCD customized, rugged solutions include new family of panoramic displays offering proven performance in large scale military applications, medical, TV and video, as stand alone or rackmount configuration from single to quad in a 3U rack with PowerMac, Intel and AMD processors option built for each display.
GVS is ISO9002 certified.
Features Specifications
  • Rugged Plastic Casing
  • 4-wire resistive Touch Screen (USB) Option
  • Multi-Monitor Support
  • On Screen Display Control
  • For PC, Mac, SUN, Server, GPS, and various VGA Use
  • VGA Input x 1 & Video Input x 2
  • Audio Input / Built-in Speaker
  • NTSC / PAL Multi-System
  • 16x9 Aspect Ratio
  • High Resolution Display - up to 1600 x 1200
  • Upgraded High-Brightness CCFL
  • Philips Video Processor
  • High Quality Scaling and Anti-Aliasing
  • Auto power-on upon signal detection
  • Automatic display adjustment
  • Copper Stand: 360/ Height Adjustment
  • 20-Pin heavy-duty connector
  • Anti Glare Coating
  • Supports 12V DC ~ 14.4V DC
  • E1 Certified for Automotive use
  • Screen Size:  Diagonal 7"  (16:9)
  • Physical Resolution: 800 (H)  x 480 (V)
  • Supported Resolution:  640 x 480 ~ 1600 x 1200
  • Dot Resolution: 2400 x 480 = 1,152,000 (dots)
  • Brightness w/o Touchscreen: 400 cd/m
  • Brightness w/ Touchscreen: ~300 cd/m
  • Touch Screen Interface: USB port option
  • Operating Voltage:  DC 12V
  • Power Supply:  DC 11V ~ 14.4V, 1A
  • Power Consumption:  <8W
  • Operating Temperature:  23F ~ 158F
  • Dimension (in):  7.75W x 4.75H x 1.38D
  • Weight (lb): 1.28
  • FCC, CE, E1
  • 12 Month Warranty


PALCD-0701B


Panoramic Wide digital LCD display option




Panoramic graphic card option




Panoramic Touch Screen

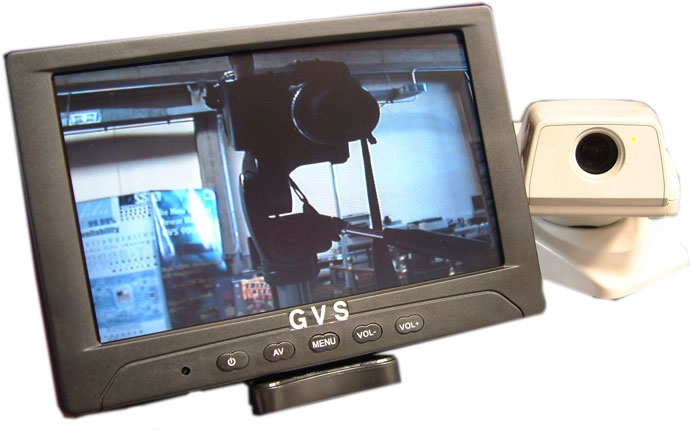

Panoramic NTSC Display




4 Different video input on a each LCD display




High-resolution playback HDTV 480p, 540p, 576p, 720p and 1080i




Extended warranty service package
