Panoramic 4X-Wall

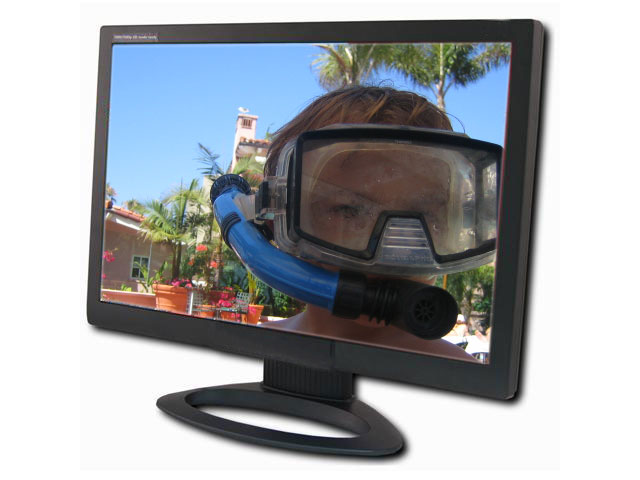

The Panoramic 37HD is 37" high resolution (1920x1080) LCD panel capable of producing nearly 17 million colors. Current implementation in command control rooms, crucial airline decision rooms for vital technical data in a very large group and individual level, with content duplication over a large display. The system design to accepts enhanced HDTV, DVI port, HD Component (Y, Pb, Pr) & Audio (R/L), S-Video 4-pin DIN & Audio (R/L) X 2, Composite RCA A/V & Audio (R/L) x 2 and Mac/PC Audio inputs for computer monitoring. It able to deliver picture in picture (PIP) with optional sizing and location on screen, and switch between computer single.

Panoramic 37HD can on-screen menu parameters are available for all 4 input selection, 16:9 or 4:3 aspect ratio, color, tint, contrast and brightness adjustments. All Panoramic Series models are constructed of steel and aluminum, with active display area from 1920x1080 and contrast ratio 1000:1. The unit includes power supply, DVI, VGA, S-Video, AV, USB, Audio input cables and owners manual.

GVS Panoramic 37HD Display technical specification Table:

Image Image Image
Model

Panoramic
Panoramic 37HD Display

Part Number
PN PAN37016-01

Model Number
Panoramic-37HD

LCD Size VLS
37"

Display Type
TFT LCD/TV

Support HDTV
1080i, 1080p, 720p, 480p, 480i (ATSC + NTSC)

Display Color
16.7 Million

Hor. Freq.Range
NTSC & ATSC Tuner

Ver. Freq. Range
56 Hz to 85Hz

Maximum Input Video Bandwidth
200 MHz

Native Resolution
1920 x 1080

Recom. PC/Mac Res.
1920 x 1080 @ 60 Hz

Power Supply
0.4A @ 100 - 120 Volts 5W (Save)

Controls
Digital

On-Screen Manager
Yes

Brightness
250 cd/m2

Contrast Ratio
1000:1

Color Gamut
LCD panel 60%(typ) against NTTSC color

Backlight without Inverter
6 cold cathode fluorescent lamps light

Power Consumption per display
80 W (max) 5W (Save)/per display

Pivot Enabled
Yes

Removable Stand
Yes

Touch Screen
Optional

Multimedia
Attachable speaker

Input Signal
HDTV HDMI or DVI port, HD Component (Y, Pb, Pr) Audio (R/L) X 1, S-Video 4-pin DIN Audio (R/L) X 2, Composite RCA A/V-Audio (R/L) x 2 , VGA 15-pin D-Sub, Mac/PC Audio in

Response time (ms)
25

Signal Cable
15 Pin D-Sub, DVI-D, S-Video, AV connector, USB up and down

Physical Dimensions Per Pannel (WxHxD)
w/ stand: 45.25”W x 10.38"D x 26.38"H

Packaging Dimensions Per Pannel (WxHxD)
42”W x 14"D x 30.5"H

Physical Weight Per Pannel
54.4 lbs

Packaging Weight Per Pannel
60.0 lbs

Plug and Play
DDC 2B

Warranty for LCD display and backlight
1- years

Pixel failure class/Viewing Direction Class
ISO13406-2/4 and Reflection class 1

Viewing Angle (H/V)
80°/80° Super MVA technology

Video Picture In Picture Mode
PIP Control and PIP size, PIP H and V-Position

Video Level
Analog: 0.7 VP-P; Digital; TMDS

Audio
Audio inx1, 3.0W Speakerx2 with built-in amplifier

Regulatory
UL/ CUL, VCCI, CB, FCC Class B

Customize & price


PAN37016-01
