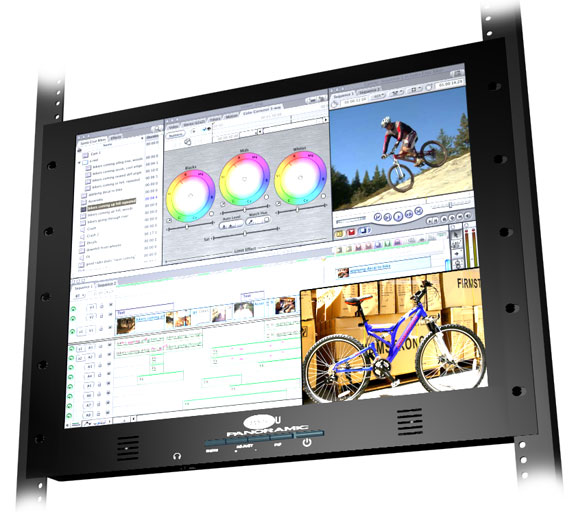

The Panoramic 8U is 20.1" high resolution (1200x1600) LCD panel capable of producing nearly 17 million colors. It accepts one composite video signal in either NTSC or PAL format. It also has S-Video, SXGA, DVI-D inputs for computer monitoring. It is able to deliver picture in picture (PIP) with optional sizing and location on screen, and switch between computer signal and video signal, with PowerPC G4 or G5, Intel P4 or Xeon, and AMD Optron or Althlon processors option built for each display,

Panoramic 8U can be used as a main computer system w/ 10/100/1000B•T Interface and DVD/RW with option of having another computer display source, as well as video source, all with single 8U rack space, stereo audio speaker, built in amplifier and USB hub. On-Screen menu parameters are available for all 4 input selection, 16:9 aspect ratio, color, tint, contrast and brightness adjustments. All Panoramic Series models are constructed of steel and aluminum, and can be tilted 180 degrees while rackmounted. The unit includes power supply, DVI, VGA, S-Video, AV, USB, Audio input cables and owners manual.

GVS Panoramic 8U Display technical specification Table:



Image Image Image
Model
Panoramic1u Panoramic1u Panoramic1u

Panoramic
Panoramic 8U Display

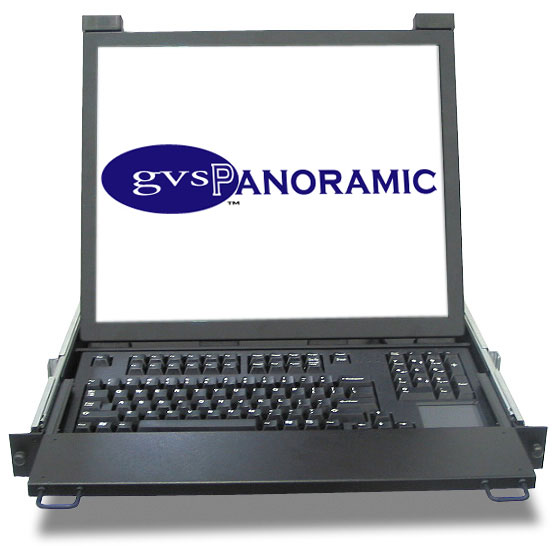

Panoramic 1U 19" LCD

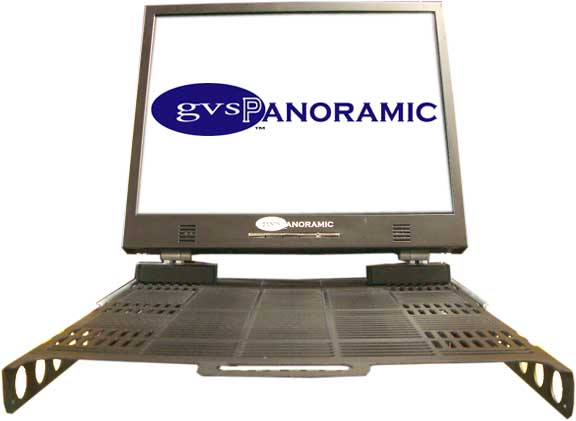

Panoramic 1U 17 " 16:9 LCD
Panoramic 2U 20" LCD

Part Number
PAN0208U-02
PAN0191U-02 PAN0171U-03 PAN0202U-03

Model Number
Panoramic 20-8U
Panoramic 19-1U Panoramic 17-1U Panoramic 20-2U

LCD Size VLS
20.1" (510mm)
19" (483mm) 17" (432mm) 20.1" (510mm)

Display Type
Matrix thin film transistor, liquid

Pixel Pitch
0.255 mm

Display Color
16.7 Million

Hor. Freq.Range
24 kHz to 82 kHz

Ver. Freq. Range
56 Hz to 85Hz

Maximum Input Video Bandwidth
200 MHz

Native Resolution
1600 x 1200
1600 x 1200 1440 x 960 1600 x 1200

Recom. PC/Mac Res.
1600x1200@75 Hz
1600x1200@75 Hz 1440x960@75 Hz 1600x1200@75 Hz

Power Supply
0.4A @ 100 - 120 Volts 5W (Save)

Controls
Digital

On-Screen Manager
Yes

Brightness
250 cd/m2

Contrast Ratio
700:1

Color Gamut
LCD panel 60%(typ) against NTTSC color

Backlight without Inverter
6 cold cathode fluorescent lamps light

Power Consumption per display
80 W (max) 5W (Save)/per display

Pivot Enabled
Yes

Removable Stand
Yes

Touch Screen
Optional

Multimedia
Attachable speaker

Input Signal
Digital, Analog, S-Video, Composite, USB

Response time (ms)
25

Signal Cable
15 Pin D-Sub, DVI-D, S-Video, AV connector, USB up and down

Physical Dimensions (WxHxD)
17.1"x13.8"x1.5" (435.0x350.4x38.5mm)

Packaging Dimensions (WxHxD)
24.0" x 20.0" x 7.0"

Physical Weight
15.0 lbs/per display

Packaging Weight
22.0 lbs/per display

Plug and Play
DDC 2B

Warranty for LCD display and backlight
3- years

Pixel failure class/Viewing Direction Class
ISO13406-2/4 and Reflection class 1

Viewing Angle (H/V)
170°/170°

Video Picture In Picture Mode
PIP Control and PIP size, PIP H and V-Position

Video Level
Analog: 0.7 VP-P; Digital; TMDS

Audio
Audio inx1, 3.0W Speakerx2 with built-in amplifier

Regulatory
UL/cUL, TUV-GS, CE, VCCI, FCC B DoC TUV-Ergonomics, Energy Star Program

Options, Power, touch screen and CPU


PAN0208U-02
