Flypack
VTR storage workstations asset management
Worksation

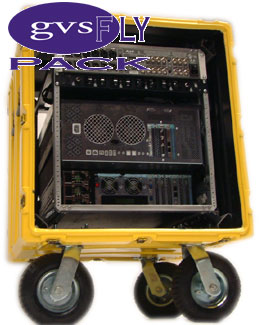

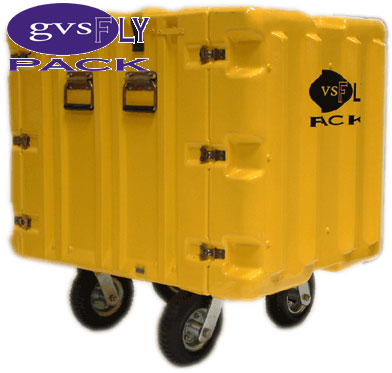

Introducing the FlyPack, the 2nd generation GVS rack case system with durable plastic and aluminume components allowing for extra wear and tear. The guided base system with custom air casters helps direct the rack over rough ground and even over curbs without damage to internal rack equipment.

The main design is based on 8 to 16 shocks that hold the rack away from the case, minimizing the impact to the actual internal hardware. With its ability to absorb extreme impact force, it provides a more rugged environment for your sensitive electronic equipment.

Each face is designed to mount on either side for easy storage and offers the ability to stack a number of 9000VTR units on top of one another with specific space required for the equipment. The internal door allows storage of all additional hardware power cords and cables that are not part of the rack. And the FlyPack is air tight sealed for all weather conditions to insure no water damage.

GVS FlyPack Case technical specification Table:
XLC7
XLD7
4NXU
4XRP
2XR4
4XR8 2XR6
2XR2
XLC7
XLD7
4NXU
4SRP
2XR4
4XR8
2XR6
2XR2
Image Image Image
Model

Panoramic
Flypack 11U Case

Part Number
PN FLY0211U-02

Model Number
FlyPack-11U

Case Size
2U to 42U

Case Type
thermoplastic composites ultra-lite composite

Case Thickens material and wall
3.44 mm inner / 37.4mm outside

Color
Yellow

HeightSize
28.0"(711.2mm)

Weight Size
27"(685.8mm)

Maximum Depth
28.0"-36"(711.2-914.4mm)

Inside rack Height
19.5"(485.3mm)

Inside rack width
17.75"(450.85mm)

Inside rack depth & Outside rack depth
22.5"(571.5mm) & 25.0"(635mm)

Front face inside and outside depth
7.0" (177.8mm)/ 2.75"(69.85mm)

Rear face inside and outside depth
7.0"(177.8mm) / 5.0"(127.0mm)

Front caster
Fixed or revolving 8" standard optional 4"-10"

Rear caster
Fixed or revolving 8" standard optional 4"-10"

Caster Type
Solid, Air compressed

Backlight without Inverter
