Grande Vitesse System GVS, Inc. - GVS90004U PowerPC PowerMac - Technical Specifications

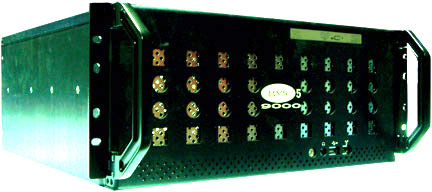

GVS90004U Dual PowerPC G5 less than 19" rack depth up to 3TB internal RAID storage

GVS90004U PowerMAC G5 w/SAN RAID + RACKMOUNT:

Includes:
Dual 2.5-2.7GHz PowerPC® G5 Processors
3 PCI-X slot and 1xAGB
6x internal up to SATA2, Fibre or U320 drive bay.
Dual 2GB Fibre PCI card option
6x500GB SATA 7200RPM drive
1 USB and 1 Firewire interface
• System software OSX or Linux

1year limited warranty

Software RAID 0, 1, 3, 5, and 0+1
6 drive bays
ATI Radeon 9600 Pro w/128MB
One Power supply
4-8GB memory 8 DIMM Sockets
56Kbps Modem Internal
DVD/RW-CD/RW Drive
Firewire 800, 2xFirewire 400(1x on front), 3xUSB(1 on front)
2xAudio/out one on front

Hardware raid rackmount solution
Dual G5 PowerPC
PowerPC G5















The world’s lowest profile PowerPC G5 4U RACK system available. With processor speed of DUAL 2.5 or 2.7GHz PowerPCMAC G5 mother board in less than 8.0” the GVS90004U PPC is the only product of its kind available in the market today.

The GVS9000 PowerPC comes with dual 2.5 or 2.7GHz PowerPC G5 processors running at speeds of up to 20GBps, 512KB of dedicated L2 cache memory per processor, one full-length 64-bit and one AGP 8X slots, and 4GB of DDR SDRAM you can upgrade up to 8GB. Plus 6x500GB SATAII or SAS 10, 000RPM 16MB cache drive configured as internal SAN RAID holding about 3,000GB of shared disk space
with removable drive, single Gigabit Ethernet(onboard), 6xSATA, U320 or 2-4GB Fiber drive interface, ADC and DVI standards-based network services in Mac OS X or Linux, operating systems.

The GVS9000 dual 2.7 or 2.5 GHz Power Mac G5 models, we taken efficient data access one step further, to exceed data access over 3.2Gbit/sec ideal for most application such as HD 4:4:4 video Editing, 3D, military, scientific, medical, audio, retouching, as well as SAN/NAS environment, ideal video and audio recording, every thing you need in 19" rack mount unit with less than 19" deep rack space, ideal for road and portable with its rugged design.

In the case of the dual 2.7GHz PowerPC models however, we’ve taken efficient data access one step further with RAM support up to 16GB, storage of up to 8TB with optional 10,000 RPM drive bay, ideal for High Performance Computing (HPC) in scientific and technical environments, as well as for VTR. The G5 processor’s superscalar, superpipelined architecture supports up to 215 simultaneous in-flight instructions with a high-bandwidth execution core offering over 12 discrete functional units, including dual floating-point units and dual integer units, to process immense instructions in parallel — and of course, with 64-bit precision on 64-bit wide data paths. And by subtracting the components better suited for high-end rugged workstation and server node .

Part Number
CPU
Memory GB
L2 Cache
Optical Drive
Graphics Card
Internal Storage
RAID
G4U25040160-003 500MB at 220MB/sec G5-Dual 2.7GHz 4GB 512KB

1xDVD/R

ATI Radion 9800 Pro Dual/256MB 1x160GB SATA
n/a
Part Number
Storage Zie
SPEED
Interface
Drive Cache
Number Drive
Drive Model
Internal Storage
RAID
NomadicAV 1000GB 220MB/sec 180MB/sec SATA 8MB

4

removable drive access 4x250GB SATA Drive
SW-RAID 0
Part Number
Type
SPEED
Interface
Drive Interface
Number Fiber
Description
SFP
#SFP
PCI-X Fiber Dual Fibre 64-bit/133MHz PCI-X 2xFibre

2

Fibre Channel PCI-X Optional
0

SPEC
