GVS Panoramic 24" Display technical specification Table

Image Image Image

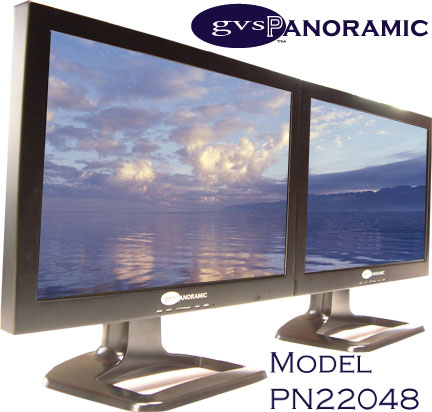

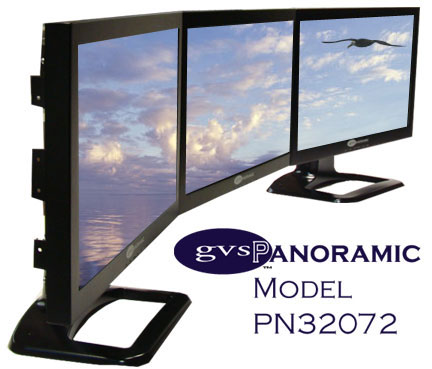

Panoramic Single panoramic Display Dual panoramic Display Triple Panoramic Display Quad Panoramic Display Quint Panoramic Display
Part Number PN012024 PN022048 PN032072 PN042096 PN052120
Model Number Panoramic-120 Panoramic-220 Panoramic-320 Panoramic-420 Panoramic-520
LCD Size VLS 24" 48" 72" 96" 120"
Display Type Matrix thin film transister, liquid
Pixel Pitch 0.270 mm
Display Color 16.7 Million
Hor. Freq.Range 31 kHz to 81 kHz
Ver. Freq. Range 56 Hz to 75 Hz
Maximum Input Video Bandwidth 200 MHz
Native Resolution 1920 x 1200 3840 x 1200 5760 x 1200 7680 x 1200 9600 x 1200
Recom. PC/Mac Res. 1920 x 1200 @ 75 Hz
Power Supply 0.4A @ 100 - 120 Volts 2W (Save)
Controls Digital
On-Screen Manager Yes
Brightness 300 cd/m2
Contrast Ratio 500:1
Color Gamut LCD panel 60%(typ) against NTTSC color
Backlight without Inverter 6 cold cathode fluorescent lamps light
Power Consumption per display 90 W (max) 2W (Save)/per display
Pivot Enabled Yes
Removable Stand Yes
Touch Screen Optional
Multimedia Attachable speaker option
Input Signal Digital and Analog
Response time (ms) 25
Signal Cable 15 Pin D-Sub and DVI-D
Physical Dimensions (WxHxD) 23.0" x 20.0" x 9.5"/
Packaging Dimensions (WxHxD) 25.0" x 30.0" x 14.0"/per display
Physical Weight 23.0 lbs/per display
Packaging Weight 28.0 lbs/per display
Plug and Play DDC 2B
Warranty for LCD display and backlight 3- years
Pixel failure class/Viewing Direction Class ISO13406-2/4 and Reflection class 1
Viewing Angle (H/V) 170°/170°
Single input Video Analog RGB, DVI digital Link
Video Level Analog: 0.7 VP-P; Digital; TMDS
Sync Type Separate H/V, Composite H/V
