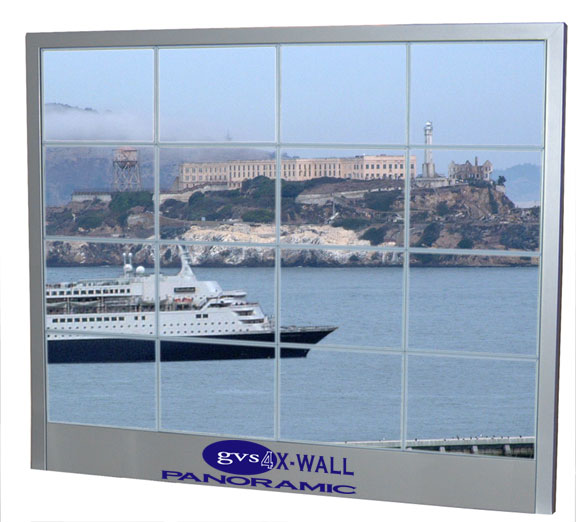

The Panoramic 4X-Wall is 300" high resolution (7,000x4,000) LCD-WALL panel capable of producing nearly 17 million colors. Current implementation in command control rooms, crucial airline decision rooms for vital technical data in a very large group and individual level, with content duplication over a large display. The system design to accepts composite video signal in ether NTSC or PAL format. It also has an S-Video, SXGA, DVI-D inputs for computer monitoring. It able to deliver picture in picture (PIP) with optional sizing and location on screen, and switch between computer single.

Panoramic 4X-Wall can on-screen menu parameters are available for all 4 input selection, 16:9 or 4:3 aspect ratio, color, tint, contrast and brightness adjustments. All Panoramic Series models are constructed of steel and aluminum, with active display area from 1900x1280 to 7000x4000 and contrast ratio 800:1. The unit includes power supply, DVI, VGA, S-Video, AV, USB, Audio input cables and owners manual.

GVS Panoramic 4X-WALL Display technical specification Table:

Image Image Image
Model

Panoramic
Panoramic 4X-WALL Display

Part Number
PN PAN4X016-01

Model Number
Panoramic-4X

LCD Size VLS
24", 36", 42", 52", 60"

Display Type
Matrix thin film transistor, liquid

Pixel Pitch
0.255 mm

Display Color
16.7 Million

Hor. Freq.Range
24 kHz to 82 kHz

Ver. Freq. Range
56 Hz to 85Hz

Maximum Input Video Bandwidth
200 MHz

Native Resolution
1900 x 1200

Recom. PC/Mac Res.
1900 x 1200 @ 75 Hz

Power Supply
0.4A @ 100 - 120 Volts 5W (Save)

Controls
Digital

On-Screen Manager
Yes

Brightness
250 cd/m2

Contrast Ratio
10,000:1

Color Gamut
LCD panel 60%(typ) against NTTSC color

Backlight without Inverter
6 cold cathode fluorescent lamps light

Power Consumption per display
80 W (max) 5W (Save)/per display

Pivot Enabled
Yes

Removable Stand
Yes

Touch Screen
Optional

Multimedia
Attachable speaker

Input Signal
Digital, Analog, S-Video, Composite, USB

Response time (ms)
25

Signal Cable
15 Pin D-Sub, DVI-D, S-Video, AV connector, USB up and down

Physical Dimensions Per Panel (WxHxD)
24": 23.0" x 20.0" x 9.5"

Packaging Dimensions Per Panel (WxHxD)
24": 25.0" x 30.0" x 14.0"/per display

Physical Weight Per Panel
24": 23.0 lbs/per display

Packaging Weight Per Panel
24": 28.0 lbs/per display

Plug and Play
DDC 2B

Warranty for LCD display and backlight
3- years

Pixel failure class/Viewing Direction Class
ISO13406-2/4 and Reflection class 1

Viewing Angle (H/V)
170°/170°

Video Picture In Picture Mode
PIP Control and PIP size, PIP H and V-Position

Video Level
Analog: 0.7 VP-P; Digital; TMDS

Audio
Audio inx1, 3.0W Speakerx2 with built-in amplifier

Regulatory
UL/cUL, TUV-GS, CE, VCCI, FCC B DoC TUV-Ergonomics, Energy Star Program
Cutom Frame on-site setup GVS offers custom frame structure for easy setup as well as temporary for wall's of 10ft, 20ft, 30ft, 50ft, and 100ft, that would meet all local sand national safety requirement.


PN PAN4X016-01
