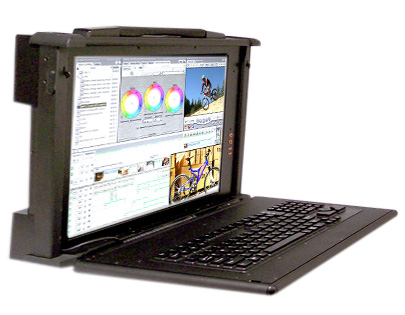

The Panoramic Portable Rugged (PPR) Display high resolution
(1280x1024) LCD panel capable of producing nearly 17 million colors. It
accepts one composite SXGA, DVI-D inputs for computer monitoring. It is able to
deliver picture in picture (PIP) with optional sizing and location on
screen with external module and switch between computer signal and video signal, with PowerPC
G5, Intel P4 or Xeon, and AMD Optron processors option
built for each PPR display,
PPR display can be used as a main computer system with DVI or VGA and USB for rugged application requirement, multiple display can be running at extreme high speed graphics which normally not available on desk top laptop, were the heat and portable is critical factor and you have CPU further away from the high speed PPR display. On-Screen menu parameters are
available for different resolution selection from aspect ratio, color, tint, contrast
and brightness adjustments. All PPR display Series models are constructed
of aluminum, and can be tilted 180 degrees while rackmounted shelf.
The unit includes power supply, DVI, VGA, S-Video, AV, USB, Audio input
cables and owners manual.
|
 |
 |
 |
 |
 |
Model |
|
 |
|
Part Number |
PN PPR0202U-02 |
|
|
Model Number |
PPR-02 |
|
|
LCD Size VLS |
17"( 432mm) |
|
|
Display Type |
Matrix thin film transistor, liquid w/tempered glass protection |
|
|
Pixel Pitch |
0.255 mm |
|
|
Display Color |
16.7 Million |
|
|
Hor. Freq.Range |
24 kHz to 82 kHz |
|
|
Ver. Freq. Range |
56 Hz to 85Hz |
|
|
Maximum Input Video Bandwidth |
200 MHz |
|
|
Native Resolution |
1280 x 1024 |
|
|
Recom. PC/Mac Res. |
1280 x 1024 @ 75 Hz |
|
|
Power Supply |
0.4A @ 100 - 120 Volts 5W (Save) |
|
|
Controls |
Digital |
|
|
On-Screen Manager |
Yes |
|
|
Brightness |
250 cd/m2 |
|
|
Contrast Ratio |
350:1 |
|
|
Backlight without Inverter |
6 cold cathode fluorescent lamps light |
|
|
Power Consumption per display |
80 W (max) 5W (Save)/per display |
|
|
Pivot Enabled |
Yes |
|
|
Removable Stand |
Yes |
|
|
Touch Screen |
Optional |
|
|
Multimedia |
Attachable speaker |
|
|
Input Signal |
Digital, Analog, S-Video, Composite, USB |
|
|
Response time (ms) |
25 |
|
|
Signal Cable |
15 Pin D-Sub, DVI-D, S-Video, AV connector, USB
up and down |
|
|
Physical Dimensions (WxHxD) |
17.1"x13.8"x1.5" (435.0x350.4x38.5mm) |
|
|
Packaging Dimensions (WxHxD) |
24.0" x 20.0" x 7.0" |
|
|
Physical Weight |
20.0 lbs |
|
|
Packaging Weight |
25.0 lbs |
|
|
Plug and Play |
DDC 2B |
|
|
Warranty for LCD display and backlight |
1- years |
|
|
Pixel failure class/Viewing Direction Class |
ISO13406-2/4 and Reflection class 1 |
|
|
Viewing Angle (H/V) |
170°/170° |
|
|
Video Picture In Picture Mode |
PIP Control and PIP size, PIP H and V-Position |
|
|
Video Level |
Analog: 0.7 VP-P; Digital; TMDS |
|
|
Audio |
Audio inx1, 3.0W Speakerx2 with built-in amplifier |
|
|
Regulatory |
UL/cUL, TUV-GS, CE, VCCI,
FCC B DoC TUV-Ergonomics, Energy Star Program |
|
|
Options, Power, touch screen and CPU |
|
 |
 |
|
|
