GVS9000 4XU24 Uncompressed VTR
4XU24 HD and 2K 4K 8K  UNCOMPRESSED DIGITAL FILM RECORDER (DDR)

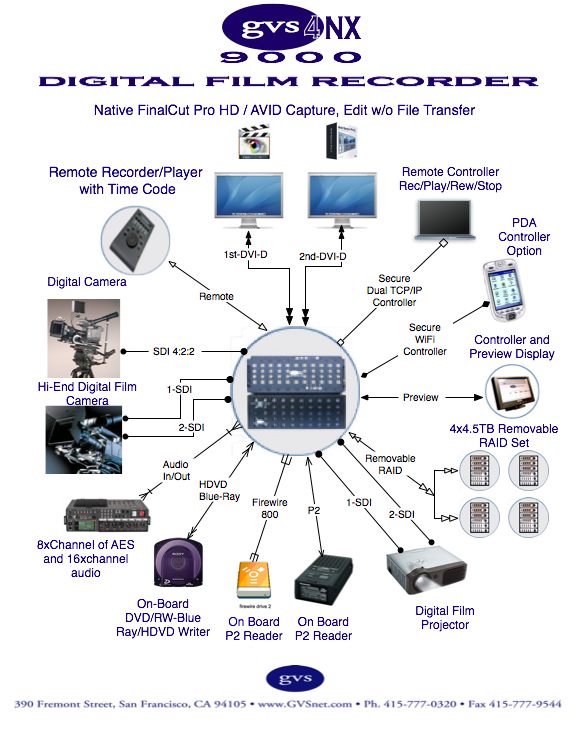

Designed to fit seamlessly into a high-resolution production workflow, the GVS90004XU DDR offers a Virtual Tape capability that allows users to incrementally move to a digital disk based workflow. With this digital disk based technology, the GVS9000 4XU DDR/DDR provides a single flexible platform for all your content production from live and post production applications.

With a huge choice of QuickTime Video hardware and industry standard compatibility with leading video editing, GVS9000 4XU DDR is a professional, non-liner DDR with uncompressed SD, dual-link HD 4.4.4, 2K 4K 8K  support and provides transparent storage and sharing over dual 4Gb/s fibre and dual gigabit network for a wide variety of digital assets making it the ideal environment for Event, Broadcast, Post house, Design and Production facility to working storage, transport and archive.

VTR Includes:

• Professional video dual SDI I/O, 8, 12, or 24 SDI composite video converters
• Data I/Os including dual 4-64Gb/s Fibre and 10 Gigabit Ethernet
• Software tools SDK for Windows, Linux and OS X provided
• Live cast during capture and playback
• Dual layer DVD/RW, Blu-ray or HD DVD mastering option



High speed 10GBit transfer option
• Direct field edit in real-time with Apple FinalCut Pro HD Software
• Low level integration
• External control via MIDI, RS422, Sony, USB, or TCP/IP
• Support for SD, HD and digital intermediate work at 2K and above
• Color space support including both 4:2:2, 4:4:4, 4:4:4:4 and 2K 4K 8K(with 36-bit color depth (optional 48-bit internal storage with 4K options)

Uncompressed Capacity:
20 Hrs. 4K

portable in 8u rack height and 22 inch deep

16xHD Live


Viper

Viper


16xHD Live

  GVS9000 4XU DDR
The GVS9000 4XU DDR allows up to 16 concurrent HD users to share content at the same time. No other storage technology provides the media to seamlessly capture 16xHD content at the same time. This technology introduces a remarkable production ability to capture live event and edit, and view all convert movies, remove scratches, or edit content in a complete shared environment.

Combined 24 Nomadic storage with GVS9000 4XU DDR offers excellent performance, superb integration with a variety of systems, and enables cost effective electronic transfer of high-resolution masters. Beginning with capture – via telecine, direct from digital camera, tape or direct to disk animation – GVS9000 4XU DDR technology records an exact copy of the original content. Throughout the post process, from color correction to DSR, editing, effects, audio processing finishing and optional down conversion for distribution, 4XU DDR can integrate with or replace portions of existing systems.

The GVS9000 4XU DDR offers 8 independent digital, format free audio I/O channels with a choice of 16, 20 or 24-bit audio at 44.1, 48 kHz as well as upgrade to 96 or 192kHz allowing the ability to sync audio to video clips recorded at any frame rate. With unlimited virtual channels and independent channel editing capabilities, the 4XU DDR supports the most rigorous audio requirements during the digital mastering process.

Whatever your requirements, GVS9000 4XU DDR offers flexibility, speed, and the highest possible image quality. Using visually lossless, highly efficient Quality Encoding fiber base shared image storage the 4XU DDR provides the most accurate digital replica of your projects available today. Support for 24, 25, 29.97, 30, 48, 50, 59.94, and 60i/p frame images, progressive, interlaced and segmented frames, drop and non-drop, allows you to work with images at their native resolution and frame rate. With this introduction, 4XU DDR provides the best platform for cost effective 2K and HD production and post as well as 4K digital intermediate to come.








Part Number
Model Number
Hardware RAID
Max Cache
HD444 Cache
I/O Interface
Audio I/O
Drive Type
Max Storage
HD Interface
DDR124S2P2F024 GVS90004XUDDR-4444
2xHD444
384MB 12TB 4:4:4:4 16 Fiber 240.0TB
2
DDR124ATP2F044 GVS90004XUDDR-4448
4xHD444
384MB 24TB 24xD/A 24 Fiber 240.0TB
4



DDR124S2P2F024
